Materials：Corrugated paper,removable Sticker,flex banner,PVC colorfilm,decorative paper,thin aluminum roll,wood paper etc.
Accuracy：Basic Definition 1200dpi, single-pass
Capacity：Up to 150m/min
Ink type： Water-based ink
PDF
Video
- Basic accuracy: 1200dpi, can be upgraded to 1800dpi
- Printing speed: the fastest 150m/min, the daily output can reach 200,000 ㎡
- Application: digital pre-printing of Corrugated paper,removable Sticker,flex banner,PVC colorfilm,decorative paper,thin aluminum roll,wood paper and other coiled materials.

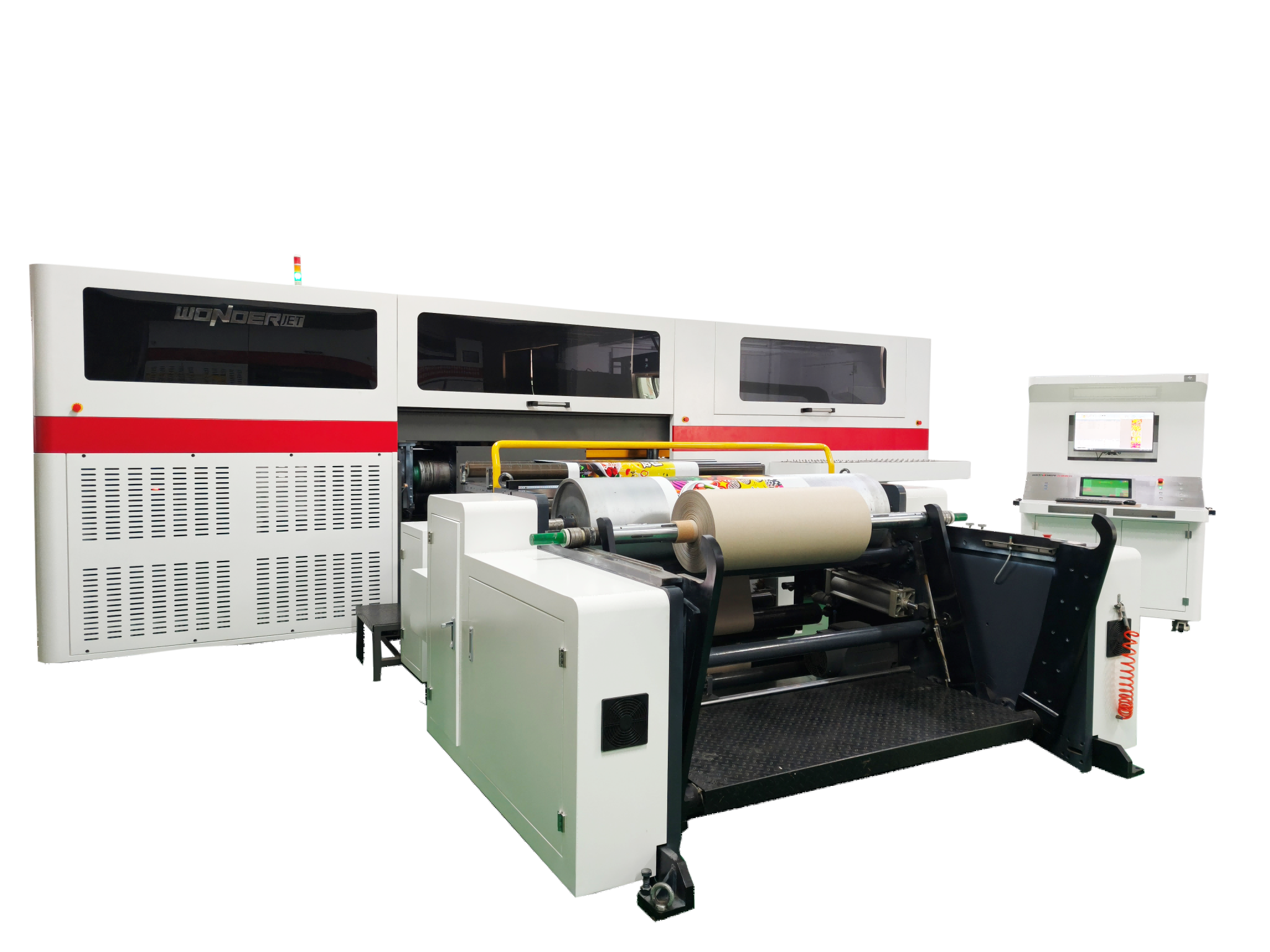

- WDRUV200++ Single Pass high speed roll-to-roll digital pre-printer, which can achieve printing quality beyond flexo printing and comparable to offset printing.
Meanwhile, the application of variable data technology in the pre-printing line of Wonder has realized the pre-printing production method of "centralized printing and dispersing into boxes".
It is more advantageous than postprinting. The online production speed is fast, no downtime, seamless order change, 24-hour continuous operation, smooth roll paper without loss,
The production quality and efficiency are greatly improved, and the time and loss costs are reduced.
Wonder's breakthrough innovation in the field of decorative paper digital printing
No plate makin, no plate roller, make all kinds of patterns and colors as demand
No complex craftsmanship, a perfect alternative to gravure and flexo printing
Reliable negative pressure and ink supply system can ensure long-term stable output of the machine Convenient operation of feeding/collecting and correcting system, labor saving
Article NO. | WDR200++ |
Printhead | Industrial-grade mirco-piezo hightest printhead |
Ink type | Special water-based dye ink, special water-based pigment ink |
Color model | Cyan,Magenta,Yellow,Black |
Medium distance | 2mm-4mm |
Printing resolution | ≥1200*150 dpi |
Printing efficiency | 1200*150dpi, max speed 2.5m/s; |
Material format | 800mm~2500mm |
Printing format | 800mm~2500mm |
Drying speed | Liner-board can be dry once print out, able to print on semi coated board if connect with drying system(optional) |
Work environment | 20oC-25oC Indoor，Humidity 50%-70% |
Ink supply | Automatic ink supply |
Feeding mode | Automatic feeding |
Material thickness | 0.2mm-0.6mm |
Operate system | Professional RIP system,professional printing system,Win10/11 system with 64 bit operating system or above |
Power supply | About 30/41 KW power：AC380±10%，50-60HZ |
Machine size | L*W*H：11500*6850*2800(mm)（具體以實際訂單為準） |
Weight | 21000KGS |
?Above information just for reference, Shenzhen Wonder Digital Technology Co.,Ltd. keep all ringhts reserved.
Subject to change without notice, final information subject to the contract.
